auto return electric ball valve for remote water control
- Model
- FH-MO-20
Item specifics
- Actuator color
- Black ( customizable)
- Valve material
- PVC, Brass, SS304 for option
- Valve size
- 1/4''-1'' (DN8-DN25)
- Thread
- BSP, NPT for option
Review
Description

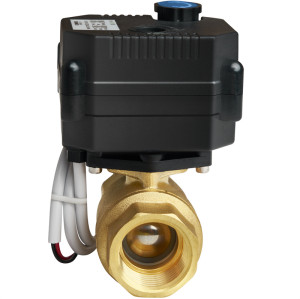

Brass electric actuated motorized on off ball valve with bracket for flow control of hot medium
Features
∎ Precision metal gear, high strength, reliable performance, long service life
∎ Multiple wiring for remote control and valve status feedback to intelligent control unit
∎ Floating sealing ball valve, no leakage
∎ Low power consumption, battery workable
∎ Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment
∎ IP 67 protection, applicable for humid environment
∎ With visual position indicator
∎ Various connectors customizable
∎ Manual override available for option
Application
Brass electric actuated motorized on off ball valve with bracket for the flow control of hot medium with temperature as high as 150℃/302℉.
Video
Dimension
D1/D2 | DN | φd | L1 | L2/L3 |
F
|
H1
|
H2
|
Weight (KG)
|
1/4'' | DN8 | 8 | 45 | 10 |
21
|
68
|
42
|
0.25
|
1/2'' | DN15 | 15 | 57 | 11 | 25 | 71 | 42 | 0.31 |
3/4'' | DN20 | 20 | 63 | 12 |
31
|
74
|
42
|
0.40
|
1'' | DN25 | 25 | 73 | 16 |
37
|
77
|
42
|
0.51
|
Unit: mm

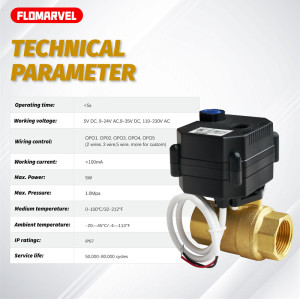

Technical parameters
Series | Torque | Operating time | Working voltage |
Working current
|
Max. power
|
Max. pressure
|
FH | 2.5 N.M | <5S | 3-6V DC, 9-24V ADC, 110-230V AC |
<100 mA
|
5W
|
1.0 Mpa
|
Medium temperature | Ambient temperature | Humidity | Enclosure |
Service life
|
Wiring |
|
0-100℃/32-212℉ | -20-45℃/-4 -113℉ | 95% | IP67 |
50,000 - 80,000 times
|
OP01, OP02, OP03, OP04, OP05 optional, customization available |
Certifications
Factory
Manufacturer sepcialized in brass electric actuated motorized on off ball valve with bracket.
