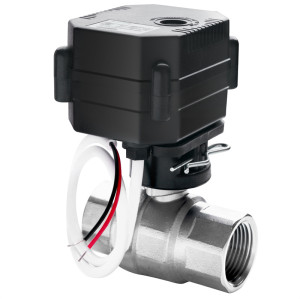

Flomarvel 1/2 3/4'' 1 inch mini electric actuator motorised ball valve 12v 110v 220v for water flow control
Flomarvel 1/2 3/4'' 1 inch mini electric actuator motorised ball valve 12v 110v 220v for water flow control
Flomarvel 1/2 3/4'' 1 inch mini electric actuator motorised ball valve 12v 110v 220v for water flow control
Flomarvel 1/2 3/4'' 1 inch mini electric actuator motorised ball valve 12v 110v 220v for water flow control
Flomarvel 1/2 3/4'' 1 inch mini electric actuator motorised ball valve 12v 110v 220v for water flow control
Model
FH-S-18

Item specifics

Actuator color
Black, custom availabe for bulk order
Valve material
PVC, Brass, SS304 for option
Valve size
1/4''-1 1/4'' (DN8-DN32)
Thread
BSP, NPT for option
Voltage
5V DC, 9-24V ADC, 110-220V AC
Wiring control
2 wires, 3 wires, 5 wires
Coil connection
35cm (13'') lead wires

Review

Description

2 way electric motorised ball valve for water control
24vac motorized ball valve
How motorised ball valves work

Motorised ball valves operate on a simple yet effective principle. The valve consists of a ball with a hole in the center and a quarter-turn actuator attached to it. When the motor actuator receives an electrical signal, it rotates the ball to either open or close the valve. This makes motorised ball valves ideal for applications where remote instant control is required.

The motor actuator includes a motor, which is integrated into an automated system. The motor provides the necessary torque to rotate the ball, ensuring smooth and reliable operation. Depending on the design, motorised ball valves can be either on-off valves or modulating valves, allowing for remote, instant, precise adjustment of flow rates.

One of the key features of motorised ball valves is their fail-safe capability. In the event of a power failure, these valves can be designed to automatically close or open, depending on the specific application. This ensures that critical processes are not compromised and prevents potential damage or accidents.

Features

 Precision metal gear, high strength, reliable performance, long service life

  Multiple wiring for remote control and valve status feedback to intelligent control unit

  Floating sealing ball valve, no leakage

  Low power consumption, battery workable

  Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment

  IP 67 protection, applicable for humid environment

  With visual position indicator

  Various connectors customizable

  Manual override available for option



Check wiring controls available: https://www.flomarvel-valve.com/f743279/Motorized-ball-valve-wiring-diagram.htm

Application
2 way electric motorized water valve  - widely used in water treatment systems, home automation, HVAC system, irrigation system, wildfire emergency sprinkler system, recreational vehicle (RV), trailer home, sprinkler truck, fire truck, air compressor, washing machine, etc., where automatic remote fluid control is needed.
Dimension
motorized valve
D1/D2
DN
φd
L1
L2/L3
H1
H2
Weight (KG)
1/4''
DN8
8
45
10
21
68
42
0.25
1/2''
DN15
15
57
11
25
71
42
0.31
3/4''
DN20
20
63
12
31
74
42
0.40
1''
DN25
25
73
16
37
77
42
0.51
Unit: mm
Technical parameters
Series
Torque
Operating time
Working voltage
Working current
Max. power
Max. pressure
FH
2.5 N.M
<5S

3-6V DC, 9-24V ADC, 110-230V AC

<100 mA
5W
1.0 Mpa
Medium temperature
Ambient temperature
Humidity
Enclosure
Service life
Wiring
0-100℃/32-212℉
-20-45℃/-4 -113℉
95%
IP67
50,000 - 80,000 times
OP01, OP02, OP03, OP04,
OP05 optional, customization available
Certifications
nsf 61 ball valve
valve with electric actuator
motorized ball valve 12v
electric open close valve
Factory
Manufacturer sepcialized in electric motorized water valve .
electric valve 12v
