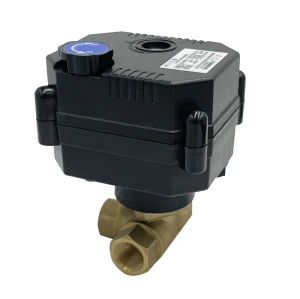

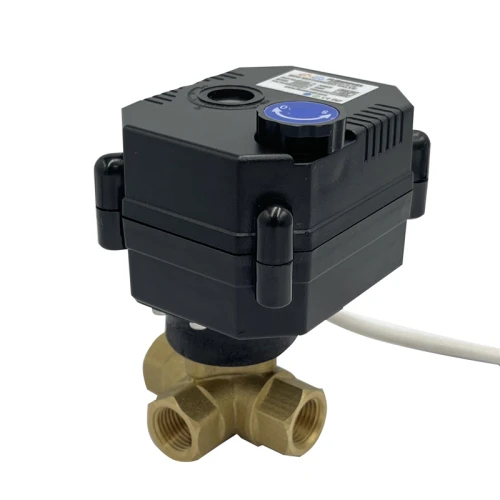

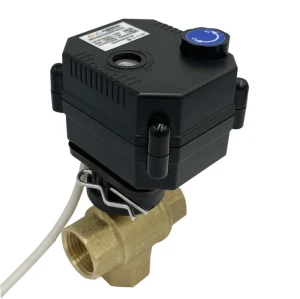

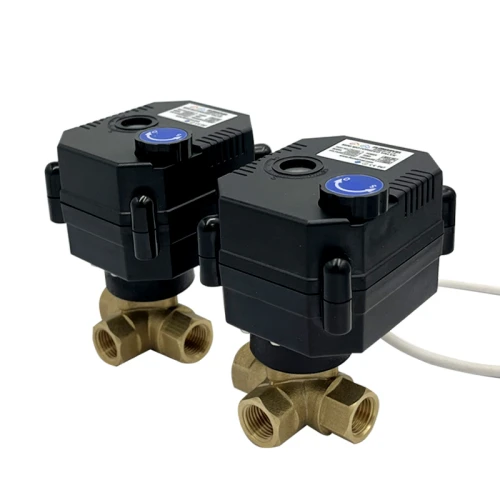

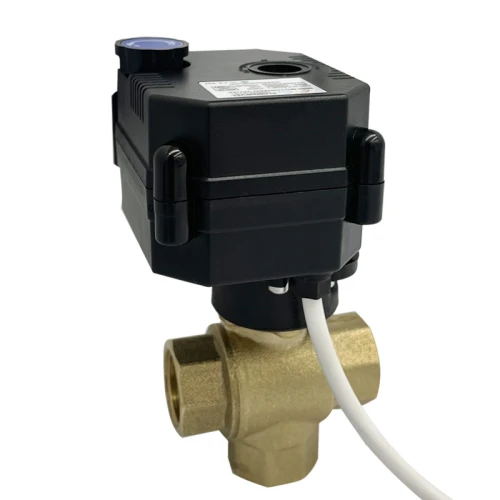

motorized 3 way ball valve with electric actuator for direction control

motorized 3 way ball valve with electric actuator for direction control

Model: FH-MO-15

Item specifics

Voltage of power supply: 3-6V DC, 9-24V ADC, 110-230V AC

Valve material: PVC, Brass, SS304 for option

Valve size: 1/4''-1'' (DN8-DN25)

Thread: BSP, NPT for option

Manual override: Optional

Position indicator: Yes

Wiring: 2 wires, 3 wires, 5 wires

Review

Description

Motorized 3 way ball valve

Features

∎ Precision metal gear, high strength, reliable performance, long service life

∎ Multiple wiring for remote control and valve status feedback to intelligent control unit

∎ Floating sealing ball valve, no leakage

∎ Low power consumption, battery workable

∎ Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment

∎ IP 67 protection, applicable for humid environment

∎ With visual position indicator

∎ Various connectors customizable

∎ Manual override available for option

Benefits of motorized 3 way valve

1. Increased Productivity with Motorized 3 way valve

motorized 3 way ball valve play a significant role in boosting productivity in industrial applications. By allowing for seamless switching between different flow paths, companies can avoid downtime caused by manual adjustments or the need for additional equipment. This leads to increased throughput and overall productivity.

In addition, the precise control offered by motorized 3 way ball valve ensures that materials are directed to the right destination at the right time. This eliminates bottlenecks and minimizes the risk of product contamination or quality issues. With improved flow control, companies can achieve higher production rates and meet customer demands more efficiently.

2. Cost Savings and Energy Efficiency with motorized 3 way ball valve

motorized 3 way ball valve contribute to cost savings and energy efficiency in industrial applications. By enabling precise control over flow paths, companies can optimize resource utilization and minimize wastage. Materials can be redirected to alternative processes or storage areas when not needed, reducing unnecessary consumption and waste.

Furthermore, motorized 3 way ball valve can be integrated with automation systems and sensors to optimize energy usage. They can be programmed to operate only when necessary, conserving energy and reducing operational costs. This combination of cost savings and energy efficiency makes motorized 3 way ball valve a sustainable choice for companies looking to improve their bottom line while reducing their environmental impact.

Flow pattern

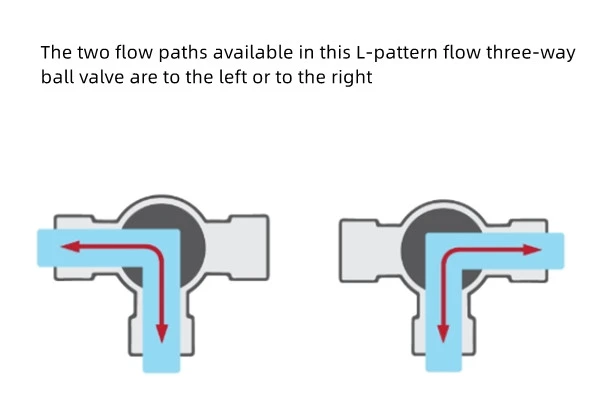

L Flow Pattern Available

L Flow Patterns, Sometimes Called 90-Degree Balls, Are Most Often Used To Allow Flow From One Common Inlet Port Out Into One Of Two Different Outlet Ports. This Is Why L-Pattern Flow Three-Way Ball Valves Are Often Called Diverter Valves.

Diverter, Selecting Or Directional Valves Are Alternate Names Used For L-Pattern Flow Ball Valves. This Is Because This Valve Design Is Widely Used To Divert Or Change The Flow Going Out Through One Of Two Different Valve Outlets Or Ports. Three-Way L-Pattern Ball Valves Used As Diverter Valves Are Usually Installed With The Bottom Port Of The Valve Body As The Common Or Flow Entry Port.

L-Pattern Flow Ball Valves With Quarter Turn Electric Ball Valve Actuator Are Also Called Two Position Valves. They Can Divert Flow Either To The Left Or To The Right With One 90-Degree Turn.

Dimension

D1/D2	DN	φd	L1	L2/L3	F	H1	H2	Weight (KG)
1/4''	DN8	8	45	10	21	68	42	0.25
1/2''	DN15	15	57	11	25	71	42	0.31
3/4''	DN20	20	63	12	31	74	42	0.40
1''	DN25	25	73	16	37	77	42	0.51

Unit: mm

Technical parameters

Series	Torque	Operating time	Working voltage	Working current	Max. power	Max. pressure
FH	2.5 N.M	<5S	3-6V DC, 9-24V ADC, 110-230V AC	<100 mA	5W	1.0 Mpa
Medium temperature	Ambient temperature	Humidity	Enclosure	Service life	Wiring
0-100℃/32-212℉	-20-45℃/-4 -113℉	95%	IP67	50,000 - 80,000 times	OP01, OP02, OP03, OP04, OP05 optional, customization available
