electric pvc ball valve driven by motor actutor
- Model
- FH-S-2
Item specifics
- Actuator color
- Black
- Valve material
- PVC, Brass, SS304 for option
- Valve size
- 1/4''-1'' (DN8-DN25)
- Thread
- BSP, NPT for option
Review
Description

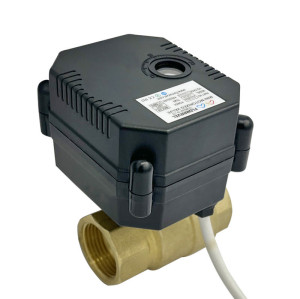

Remote control electric actuator pvc plastic ball valve
Features
∎ Precision metal gear, high strength, reliable performance, long service life
∎ Multiple wiring for remote control and valve status feedback to intelligent control unit
∎ Floating sealing ball valve, no leakage
∎ Low power consumption, battery workable
∎ Flame retarded PC-ABS enclosure with compact, exquisite structure
∎ IP 67 protection, applicable for humid environment
∎ With visual position indicator
∎ Various connectors customizable
∎ Manual override available
Application
Electric actuator ball valve/motorized ball valve - widely used in water treatment systems, home automation, HVAC system, irrigation system, wildfire emergency sprinkler system, recreational vehicle (RV), trailer home, sprinkler truck, fire truck, air compressor, washing machine, etc., wherever automatic remote fluid control is needed.
Dimension
D1/D2 | DN | φd | L1 | L2/L3 |
F
|
H1
|
H2
|
Weight (KG)
|
1/2'' | DN15 | 14 | 12.5 | 12.5 | 39 | 69.3 | 42 | 0.21 |
3/4'' | DN20 | 17 | 19 | 19 |
44
|
71
|
42
|
0.24
|
1'' | DN25 | 23 | 18 | 18 |
53
|
76
|
42
|
0.29
|
Unit: mm
Technical parameters
Series | Torque | Operating time | Working voltage |
Working current
|
Max. power
|
Max. pressure
|
FH | 2.5 N.M | <5S | DC3-6V, ADC9-24V, AC110-230V |
<100 mA
|
5W
|
1.0 Mpa
|
Medium temperature | Ambient temperature | Humidity | Enclosure |
Service life
|
Wiring |
|
CPVC 0-100℃/32-194℉ UPVC 0-45℃/32-113℉ | -20-45℃/-4 -113℉ | 95% | IP67 |
50,000 - 80,000 times
|
OP01, OP02, OP03, OP04, OP05 optional, customization available |
